Specifications of the Wire Cloth
Materials
wire gauge, weight list materials ingredient list
◯Overall stainless steel steel wire
SUS304(L), SUS316(L),
SUS309S, SUS310S
◯Galvanizing iron wire (two kinds, three kinds)
JIS G 3547
◯Hard steel wire SWRH62A(B) SWRH42B
JIS G 3506
JIS G 3521
◯Iron wire (mild steel wire rod)
JIS G 3505
SUS304(L), SUS316(L),
SUS309S, SUS310S
◯Galvanizing iron wire (two kinds, three kinds)
JIS G 3547
◯Hard steel wire SWRH62A(B) SWRH42B
JIS G 3506
JIS G 3521
◯Iron wire (mild steel wire rod)
JIS G 3505
◯Aluminum line
◯Monel metal (nickel copper compound metal)
◯Copper wire, tombac line, brass line, phosphorus bronze line
◯Titanium alloy line
◯Nickel line
◯Inconel line
◯hasuteroi alloy steel wire
◯Monel metal (nickel copper compound metal)
◯Copper wire, tombac line, brass line, phosphorus bronze line
◯Titanium alloy line
◯Nickel line
◯Inconel line
◯hasuteroi alloy steel wire
Weaver (organization)
Please appoint how to weave hope in consideration of use, a use about the edition of the Wire Cloth.
Line diameter
The measurement of the line diameter with the micrometer
●Please show either of number No. (#) of S.W.G of the thickness itself (mm, diameter) of the line or line diameter list and B.W.G clearly about the line diameter.
●I would appreciate your appointing thickness, the dimensions of the wire rod at millimeters (mm, diameter) without depending on a conventional line diameter list (SWG #, No.) to expect adequacy of the line diameter indication.
●I would appreciate your appointing thickness, the dimensions of the wire rod at millimeters (mm, diameter) without depending on a conventional line diameter list (SWG #, No.) to expect adequacy of the line diameter indication.
Difference eyes (space eyes, Opening)
The measurement (10mm) of the difference eyes by the scale
●I open the space of a line and the line constituting a net and am you with eyes. (mm)
◆Number of difference eyes = 25.4mm ÷ mesh - line diameter

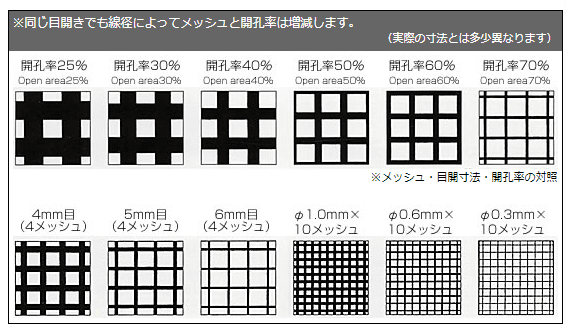

◆Space rate (Open Area) = (difference eyes) 2 ÷ (difference eyes + line diameter) 2 X 100 =%)
◆Number of difference eyes = 25.4mm ÷ mesh - line diameter
◆Space rate (Open Area) = (difference eyes) 2 ÷ (difference eyes + line diameter) 2 X 100 =%)
Mesh (Mesh)
The measurement (3mesh) of the number of the eyes by the scale
It is a unit to express the number of halftone plates of Wire Cloth and says the halftone plate that is between it of 1 inch (25.4mm).
※In crimp Wire Cloth and plain weave Wire Cloth of halftone plate dimensions when is big, please show difference eyes (space eyes) dimensions. Names of halftone plate dimensions are to usually (in Japanese Industrial Standards) use difference dimensions.
※In crimp Wire Cloth and plain weave Wire Cloth of halftone plate dimensions when is big, please show difference eyes (space eyes) dimensions. Names of halftone plate dimensions are to usually (in Japanese Industrial Standards) use difference dimensions.
Wire Cloth dimensions
●Please specify fuku and the length at a millimeter (mm).
●910mm, 1,000mm, 1,200mm, the length are basic sizes for Zhijin net standard.
●As for the width of the crimp Wire Cloth constant shaku product, as for the galvanizing iron wire product, 910mm, 1,000mm, the stainless steel product become 1,000mm, and the length becomes 15m, 20m. I cut it to irregular dimensions by hope.
●In the case of a special order product and a designated dimensions cut, please show the dimensions (intersection number) clearly.
●910mm, 1,000mm, 1,200mm, the length are basic sizes for Zhijin net standard.
●As for the width of the crimp Wire Cloth constant shaku product, as for the galvanizing iron wire product, 910mm, 1,000mm, the stainless steel product become 1,000mm, and the length becomes 15m, 20m. I cut it to irregular dimensions by hope.
●In the case of a special order product and a designated dimensions cut, please show the dimensions (intersection number) clearly.
Others
●When materials, a weaver (organization), mesh (eyes difference) line diameter, dimensions, processing is unidentified on planning the use in Wire Cloth; please consult.
●I advise you please to choose a kind of the appropriate Wire Cloth in conjunction with a purpose of use, an object, throughput, facilities, environment to support the needs of the customer.
●In addition, please be similar about the artefact.
●I advise you please to choose a kind of the appropriate Wire Cloth in conjunction with a purpose of use, an object, throughput, facilities, environment to support the needs of the customer.
●In addition, please be similar about the artefact.
